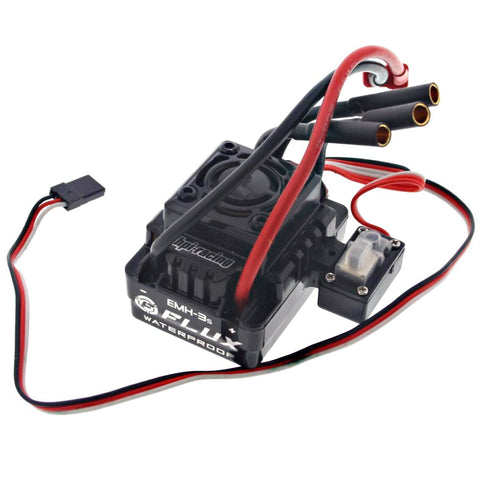

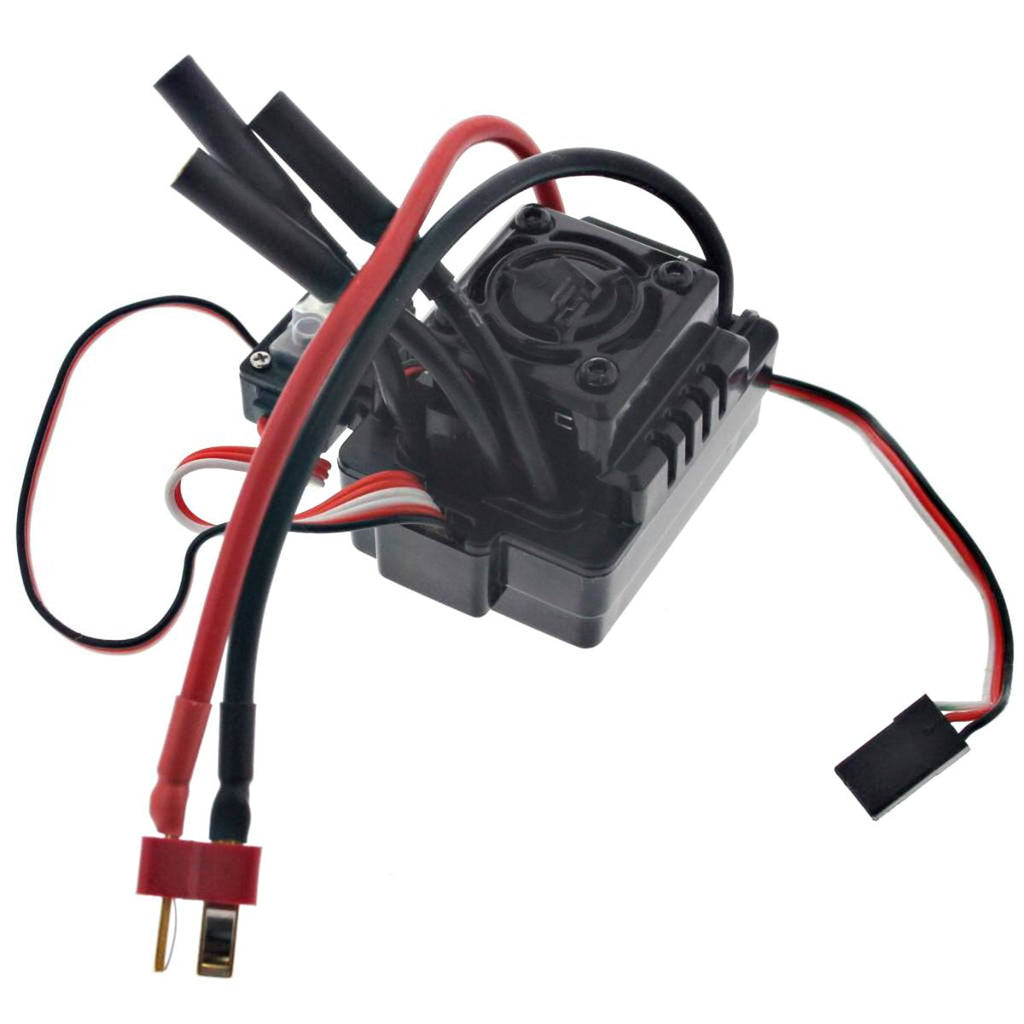

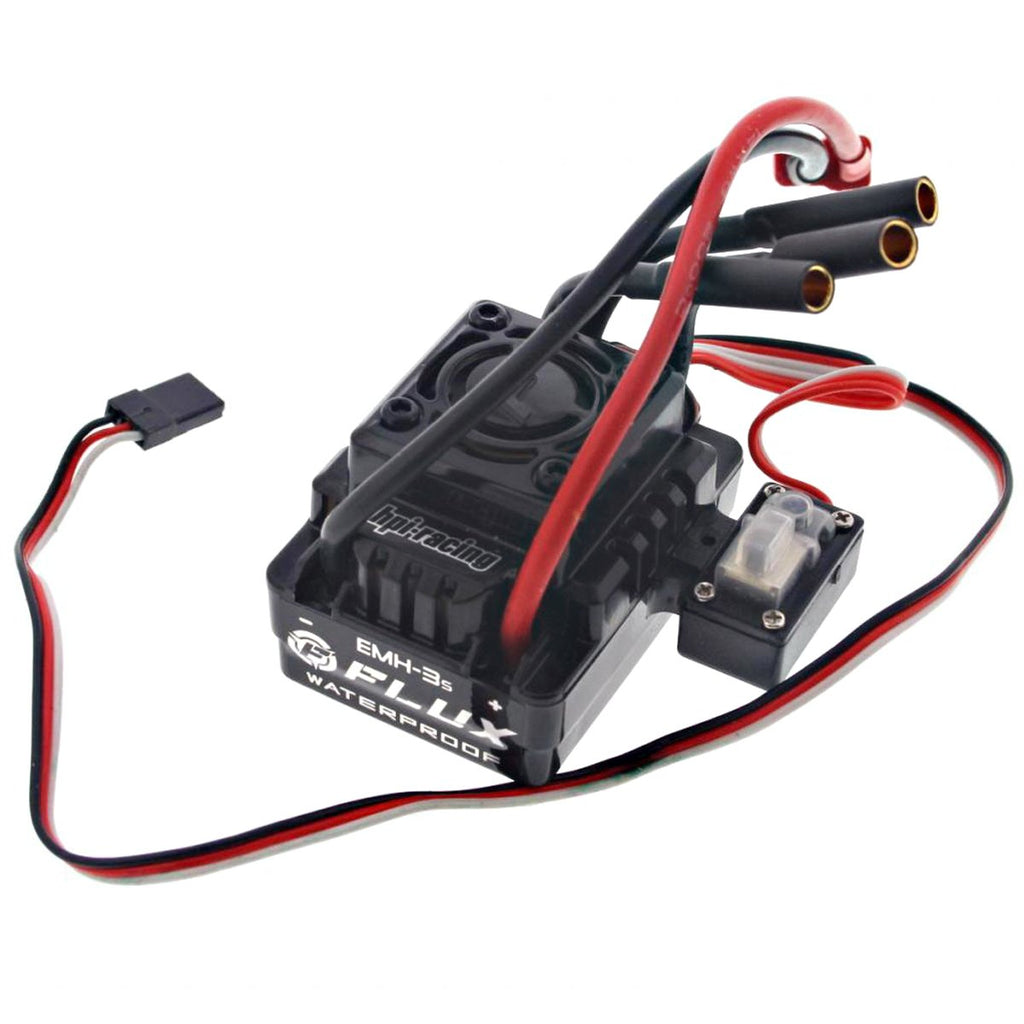

HPI Racing 1/12 Mini Savage XS Flux EMH-3S Flux Brushless Waterproof ESC

• Flux EMH-3s Brushless ESC (Part # 112851)
  • Designed to be used with the Flux MMH 4000kV Brushless Motor (Part # 106768) Sold Separately
  • Waterproof, Dustproof
  • Three Running Modes:
    • Racing (Forward and Brake)
    • Bashing (Forward, Brake and Reverse)
    • Rock Crawler (Instant Switch from Forward to Reverse)
  • Eight Step Drag Brake Adjustment from 0-100%
  • Six Auto LiPo Cut Off Settings, None or 2.5-3.4V per Cell
  • Nine Punch Start Mode Settings from Soft to Aggressive
  • Four Steps of Maximum Brake Adjustment from 25-100%
  • Four Steps of Maximum Reverse Force Adjustment from 25-100%
  • Three Steps of Initial Brake Force Adjustment from 0-40% plus Option to make IBF Equal Drag Brake Setting
  • Three Steps of Neutral Range Adjustment from 6-12%
  • Eight Steps of Motor Timing Adjustment from 0-26.25 Degrees
  • Overheat Protection
  • Multiple Protection, Auto LiPo Protection, Low Voltage Cutoff, Throttle Signal Loss
  • 13AWG Battery Leads
  • Deans Ultra Male Connector
  • Universal Receiver Connector
  • 4mm Female Motor Connectors
  • On/Off Switch
  • Specifications:
    • Constant Current: 80A
    • Burst Current: 540A
    • Resistance: 0.0004 Ohm
    • Maximum Battery Input 3s, 11.1v
    • Motor Limit:
      • 2S LiPo: Off Road, 60900kV
      • 3S LiPo: Off Road 4000kV
    • BEC: 6V/2A
    • Dimensions: 2.0x2.2x1.4" (50.5x56.2x35.4mm)

No term warranty provided by Dollar Hobbyz. No liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of this ESC.
